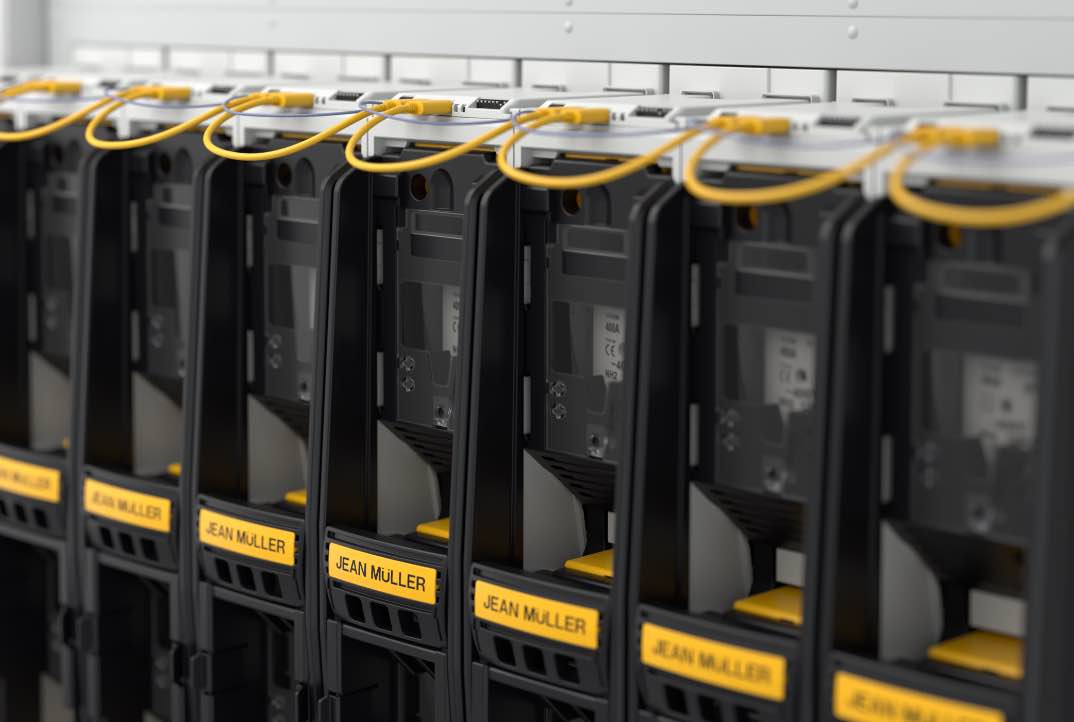

The smallest smart power-monitoring module for strip-type fuse-switch-discnnectors
– Easy installation
— Customer configurable by DIP switches
— Data interface for ModBus or CANBus (PLVario)
— Reduced wiring

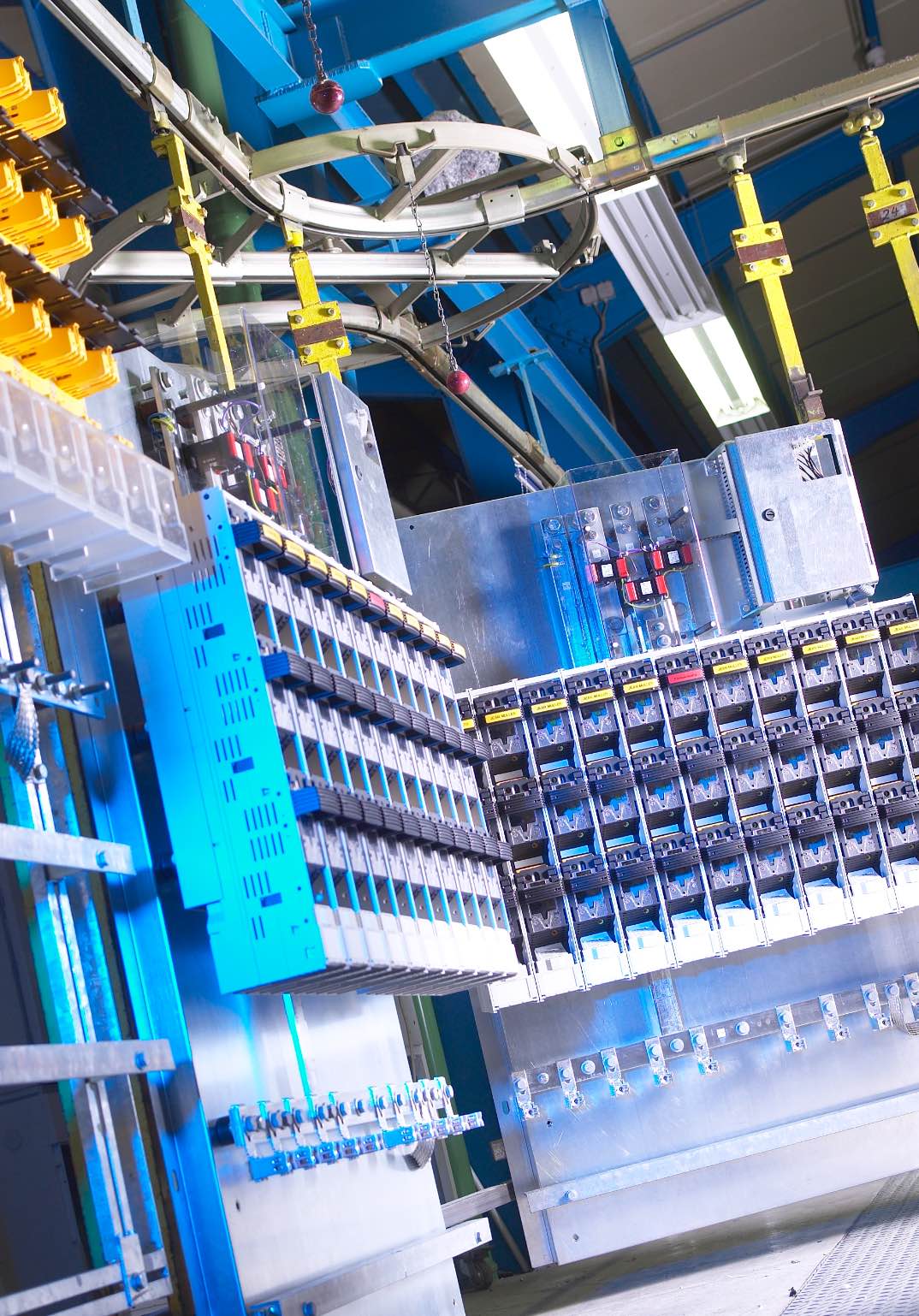

安全性、可靠性、性能和灵活性是 JEAN MÜLLER NH 熔断器开关断路器的特点。
NH 条形熔断器开关断路器满足电网运营商和行业对电网和变电站、电缆配电柜和低压配电板配电的所有要求。用于变流器的 NH 熔断器开关断路器是高效能源管理的基础。
由于受控电弧引导,具有高负载开关和短路开关能力。

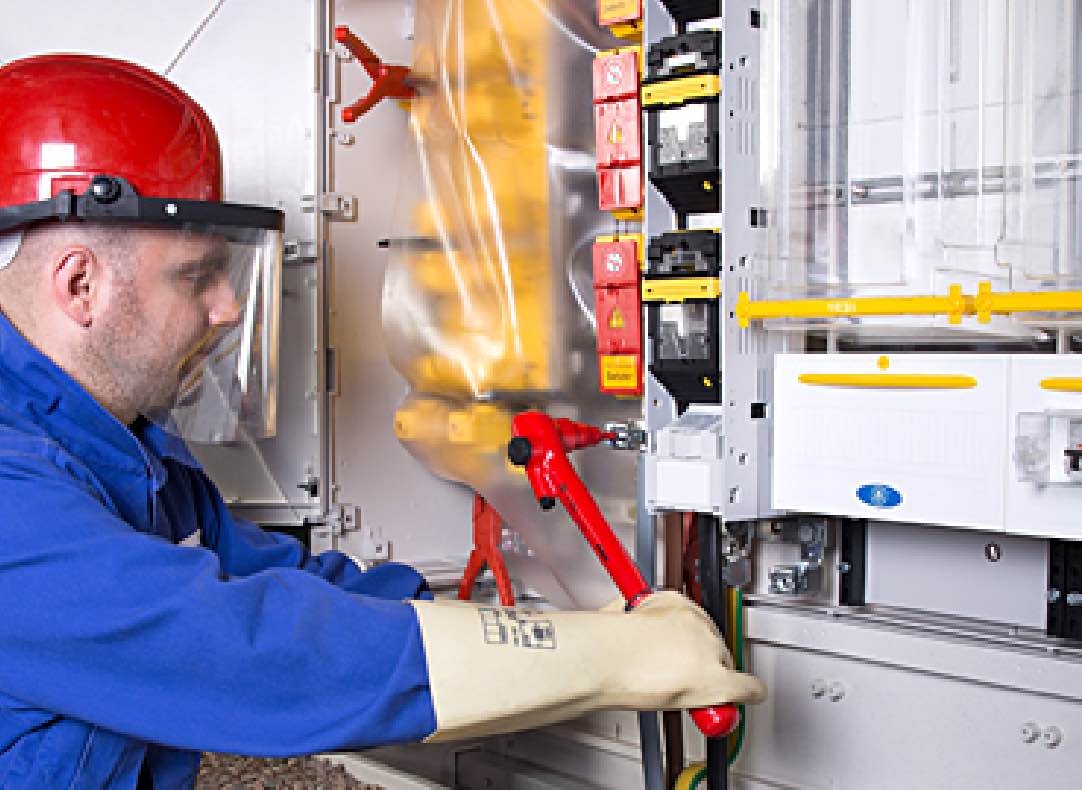

带电安装安全,因为接触系统始终受到保护。
与用于智能电网应用的测量和监控组件相结合。
The smallest smart power-monitoring module for strip-type fuse-switch-discnnectors
– Easy installation
— Customer configurable by DIP switches
— Data interface for ModBus or CANBus (PLVario)
— Reduced wiring
SL product range – Basic features
– Size 00 (160A), 1 (250A), 2 (400A), 3 (630A)
— Special versions up to 2000A
— 1‑pole and 3‑pole switchable
— for busbar systems 100mm and 185mm
— Touch protected according to IP30 from front side
— High switching capacity (up to AC23B)
— High short-circuit strength (up to 120kA)
— Low power loss
— High-quality plastics (self-extinguishing and halogen-free)
— Safe and powerful even under harsh conditions
Safe and easy installation
– 3 turning locks with clear position indication
— Touch protection IP1X even during assembly
— Retractable lever
— Lockable parking position in ON and OFF position
— Customer-defined cable connection at top or bottom side
— Coded contact cover for correct installation
— Integrated terminal cover
— Nameplate readable from front side
Integrated current transformer for your power management
– SL00: up to 160A with integrable current transformers
— SL1, 2.3: up to 1000A with integrable current transformers
— Same installation depth as standard strips
— Secondary current 1A and 5A
— Accuracy class 1 and 0.5 (class 0.5s on request)
— Pre-wired standard types
— Wiring kit with terminals as accessories
— Certified versions upon request
Fuse-monitoring unit ES00 –
one for all applications
– For size 00 to size 3
— Integrated power supply
— Rated voltage 400–690VAC
— Operation indicator
— Blown fuse indication per phase
— Collective fault indication 1 NO / 1 NC
— Suppression of fault indication Y1/Y2
— Compact design
Switch-position indicator by means of microswitch
– For retrofitting
— Snap-on mounting
— 1 changeover contact
— Load capacity up to 5A / 250V AC
Piggyback fuse adapter in flat design
– For temporary power supply services
— With indication of rated current of fuse
— Cable plug with integrated strain relief
— For NH-fuse size NH000 up to 100A
— Applicable in all NH-strip-type fuse-switch-disconnectors size 1 to 3
Installation without drilling
by means of busbar clamps
– or retrofitting to all NH strip-type fuseways and NH strip-type fuse-switch-disconnectors
— Isolated by clamp cover on rear side
— Installation on flat busbars with 5–10mm thickness
Cover systems for retrofitting
– Blank panel covers
– screw assembly
– quick closing technology
— Additional nameplates
Multi-conductor connection for double-switch disconnectors
– Handle connecting kit for ganged disconnectors
– Carrier for identification label
– Busbar railing kit for cable
– 3 x 300mm²
– 4 x 240mm²
– Terminal cover for double strip
– Also available in pre-mounted versions for 1250A, 1600A and 2000A
Benefits of the V box terminal RM300
– All parts made of aluminium for the perfect clamping
– Low power loss thanks to BYPASS technology
– Wide clamping range from 25 to 300mm² re/rm/se/sm
– High nominal torque of 32Nm (from 95mm²)
– Contact pressure by fine thread and cone pressure piece
– Optional shear head screw
– Also suitable for copper conductors
